Spectral karyotyping

Spectral karyotyping

BY Ms. Nikita Kawli 30th December 2020

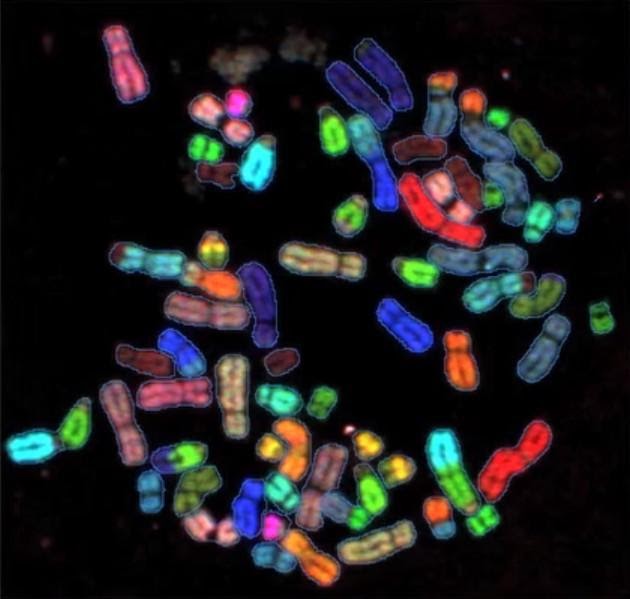

Spectral karyotyping (SKY) is a novel method for chromosome examination that has been created dependent on the methodology of the fluorescence in situ hybridization. Owing to its technology for painting each of the 24 human chromosomes with various colors, spectral karyotyping allows it possible to diagnose a range of disease [1].

Chromosomal analysis plays an important role in human leukemia diagnosis, treatment and prognosis [2-6]. In assessing the risk for phenotypic abnormalities, particularly in prenatal circumstances, the identification of marker chromosomes is significant. For the provision of information to couples about the possible phenotypic and/or developmental impact of a de novo rearrangement, the ability to determine the origin of additional genetic materials is very significant. Similarly, the detection of derivative chromosomal content will shed light on the mechanism of infertility when evaluating infertility [7-9]. In constitutional research, spectral karyotyping is an invaluable diagnostic tool for identifying marker chromosomes and chromosome exchanges that are not completely described by traditional cytogenetic methods and in identifying new subgroups of leukemia.

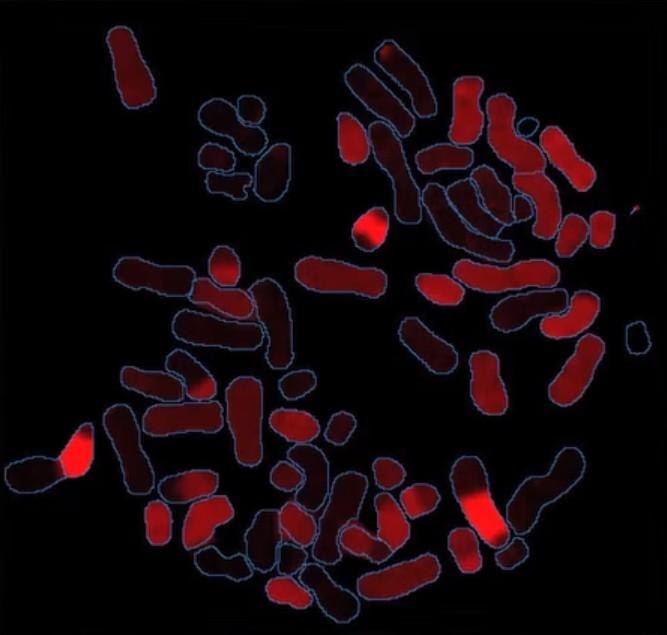

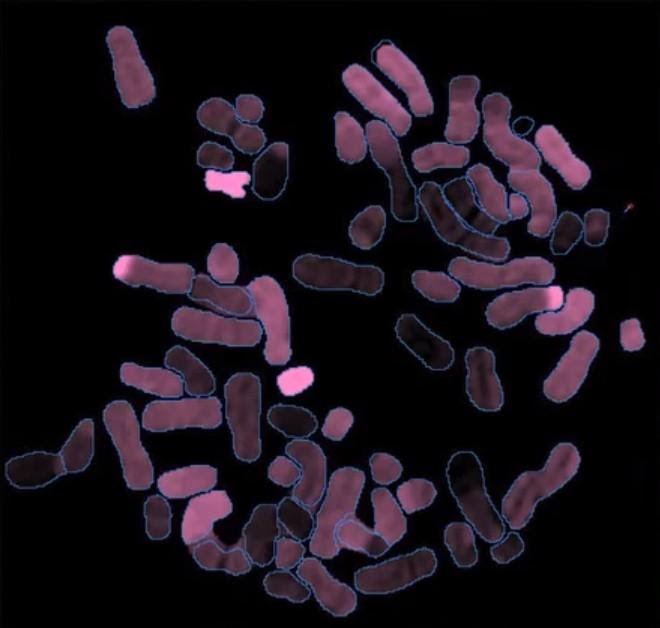

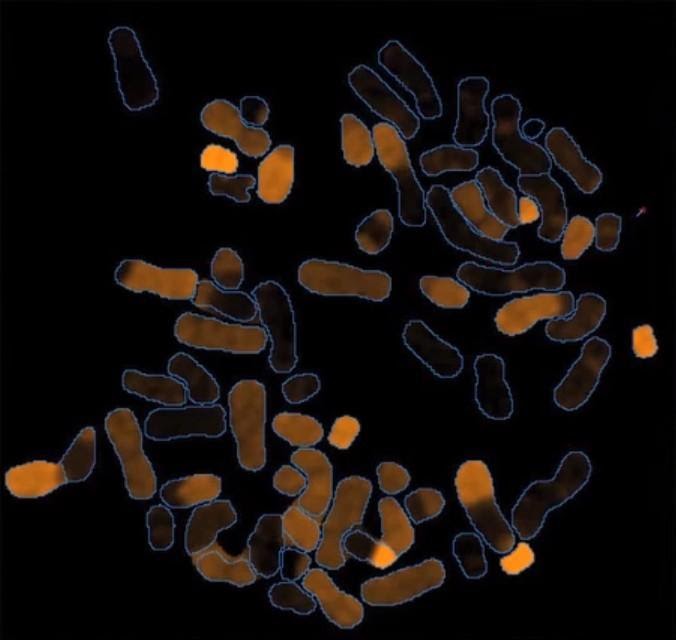

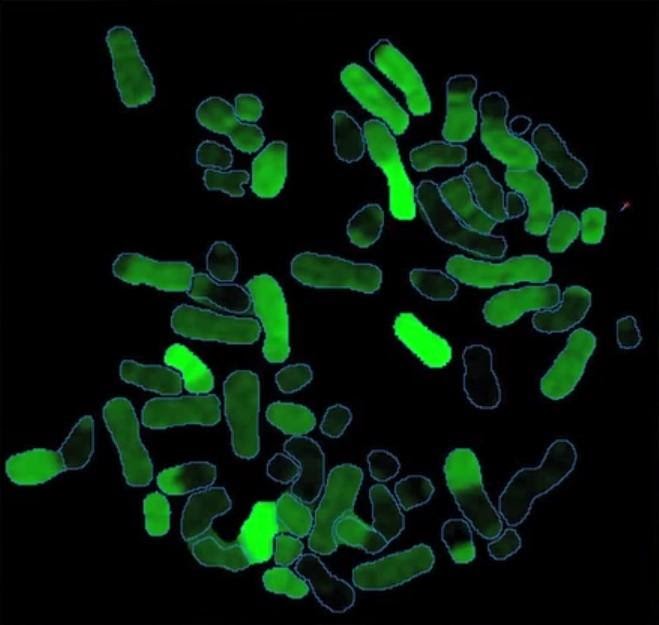

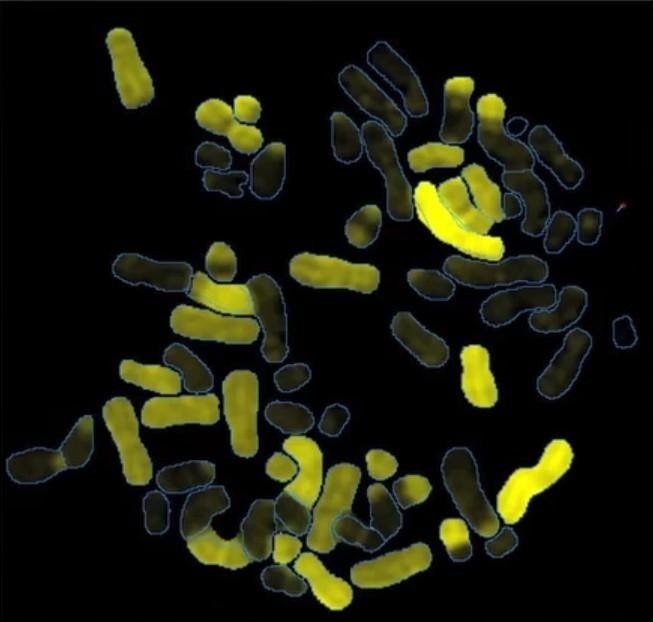

In this technology,chromosomes are painted with 24 chromosome-specific painting probes. This is called Combinatorial chromosome painting techniques. Using three fluorochromes and two haptens, the probes are labelled by degenerated oligonucleotide-primed PCR. Each probe is labeled differentially with one, two, three or four fluorescent dyes resulting in each chromosome having a special spectral signature. With similar principle of labelling the chromosomes,there emerged two techniques -Multiplex fluorescence in situ hybridization (mFISH) and Spectral Karyotyping (SKY), both follows similar basic fluorescence in situ hybridization (FISH) procedures, however the imaging methods are different [10].

 Schematic representation of SKY Detection.
Fig 1. Schematic representation of SKY Detection.

The differentiation of the chromosomes based on their spectral properties is defined by Spectral karyotyping (Fig1), while mFISH identifies the differentiation of the chromosomes based on the presence or absence of the fluorochrome when visualized with specific filters(Fig 2).

Schematic representation of M-FISH Detection.
Fig 2. Schematic representation of M-FISH Detection.

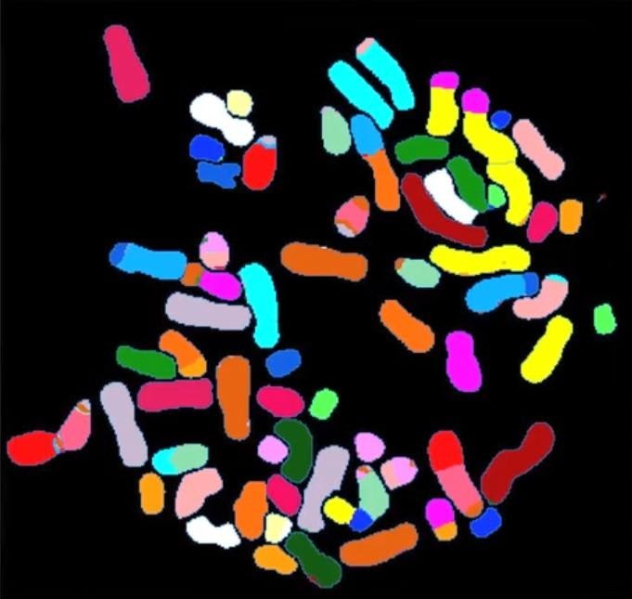

In SKY technology. using a traditional fluorescence light microscope fitted with a custom-designed triple-bandpass filter and the SpectraCube, a spectral image is acquired after in situ hybridization and immunodetection, which is able to retrieve spectral information for each pixel in a digital CCD image. The 24-colour display and chromosome classification are based on the chromosomes’ unique emission spectra. A detailed description of chromosomal aberrations is provided along with chromosome banding data from an inverted DAPI or a G-banded metaphase [11-12].

Optical Design and Analysis Flow
Fig 3. Optical Design and Analysis Flow
The simultaneous measurement of the spectral contents for each pixel in the image
Fig 4. The simultaneous measurement of the spectral   contents for each pixel in the image

The center of the platform for SKY is a  Sagnac  Interferometer, installed  on a rotatable disk to which a CCD camera is attached. The ray of light entering the triangle interferometer is divided into two beams. (a transmitted beam and a reflected beam), traveling in opposite directions, but in space on the same path. They’re hitting the CCD with Optical Path Difference (OPD) and shape a pattern of interference that is influenced in the image, by the spectral content at each point. It captures a sequence of images, at each  different OPD, to form an interferogram  at each pixel. A Fourier-analysis approach is applied to extract the sample’s hyperspectral image.

In MFISH, using specialized single band-pass filter sets and dedicated M-FISH software, microscopic visualization and digital acquisition of each fluorophore is obtained. These acquired images are then superimposed, allowing the classification of individual chromosomes in their group [13].

The main deficiency with mFISH is Cross talk between the filters. The emission spectrum of only two adjacent dyes is shown in the following example(Fig 5). Comparable filter-based measurements may provide fair results as long as the amplitude of those signals is comparable. However to compensate for its weak signal, if the green dye is faint, one will need to increase its exposure time. The cross talk factor will then be even more dominant than the green signal from other dyes (which spread all over due to 10-20 percent non-specific staining). This will cause large misclassifications.

Cross talk between filters
Fig 5: Cross talk between filters

GenASIs HyperSpectral platform is based on a cutting-edge, dual-mode optical device, which allows both interferometer-based image capture for hyperspectral imaging and direct view mode for high-resolution CCD image capture. The HyperSpectral data reveals the spectrum of every pixel in the image, and provides advanced analysis tools to extract quantitative and hidden information from within a sample. In Direct View mode, the system records image details under extremely low intensities and provides a finely detailed high resolution and high-definition image. SKY is hyper precise, accurate and hypersensitive.

References:

  1. Imataka, G. and Arisaka, O., 2012. Chromosome analysis using spectral karyotyping (SKY). Cell biochemistry and biophysics62(1), pp.13-17.
  2. Guo, B., Han, X., Wu, Z., Da, W. and Zhu, H., 2014. Spectral karyotyping: an unique technique for the detection of complex genomic rearrangements in leukemia. Translational pediatrics3(2), p.135.
  3. Mohr, B., Bornhäuser, M., Thiede, C., Schäkel, U., Schaich, M., Illmer, T., Pascheberg, U. and Ehninger, G., 2000. Comparison of spectral karyotyping and conventional cytogenetics in 39 patients with acute myeloid leukemia and myelodysplastic syndrome. Leukemia14(6), pp.1031-1038.
  4. Lu, X.Y., Harris, C.P., Cooley, L., Margolin, J., Steuber, P.C., Sheldon, M., Rao, P.H. and Lau, C.C., 2002. The utility of spectral karyotyping in the cytogenetic analysis of newly diagnosed pediatric acute lymphoblastic leukemia. Leukemia16(11), pp.2222-2227.
  5. Mrózek, K., 2008, August. Cytogenetic, molecular genetic, and clinical characteristics of acute myeloid leukemia with a complex karyotype. In Seminars in oncology (Vol. 35, No. 4, pp. 365-377). WB Saunders.
  6. Fadl‐elmula, I., Kytölä, S., Pan, Y., Lui, W.O., Derienzo, G., Forsberg, L., Mandahl, N., Gorunova, L., Bergerheim, U.S., Heim, S. and Larsson, C., 2001. Characterization of chromosomal abnormalities in uroepithelial carcinomas by G‐banding, spectral karyotyping and FISH analysis. International journal of cancer92(6), pp.824-831.
  7. Anguiano, A., Wang, B.T., Wang, S.R., Boyar, F.Z., Mahon, L.W., El Naggar, M.M., Kohn, P.H., Haddadin, M.H., Sulcova, V., Sbeiti, A.H. and Ayad, M.S., 2012. Spectral Karyotyping for identification of constitutional chromosomal abnormalities at a national reference laboratory. Molecular Cytogenetics5(1), p.3.
  8. Chen, C.P., Lin, C.C., Su, Y.N., Tsai, F.J., Chern, S.R., Lee, C.C., Chen, W.L., Chen, L.F., Wu, P.C. and Wang, W., 2010. Prenatal diagnosis and molecular cytogenetic characterization of a small supernumerary marker chromosome derived from chromosome 22. Taiwanese Journal of Obstetrics and Gynecology49(3), pp.381-384.
  9. Chen, C.P., Chen, M., Wu, C.H., Lin, C.J., Chern, S.R., Wu, P.S., Chen, Y.N., Chen, S.W., Chang, S.P., Chen, L.F. and Wang, W., 2017. Prenatal diagnosis and molecular cytogenetic characterization of mosaicism for a small supernumerary marker chromosome derived from chromosome 21q11. 2-q21. 1 and a literature review. Taiwanese Journal of Obstetrics and Gynecology56(4), pp.554-557.
  10. Loucas, B.D., 2019. Analysis of Radiation-Induced Chromosome Exchanges Using Combinatorial Chromosome Painting. In Radiation Cytogenetics (pp. 123-135). Humana, New York, NY.
  11. Macville, M., Veldman, T., Padilla-Nash, H., Wangsa, D., O’Brien, P., Schröck, E. and Ried, T., 1997. Spectral karyotyping, a 24-colour FISH technique for the identification of chromosomal rearrangements. Histochemistry and cell biology108(4-5), pp.299-305.
  12. Padilla-Nash, H.M., Barenboim-Stapleton, L., Difilippantonio, M.J. and Ried, T., 2006. Spectral karyotyping analysis of human and mouse chromosomes. Nature protocols1(6), p.3129.
  13. Anderson, R., 2010. Multiplex fluorescence in situ hybridization (M-FISH). In Fluorescence in situ Hybridization (FISH) (pp. 83-97). Humana Press, Totowa, NJ.

Ms. Nikita Kawli

Deputy Manager, Applications


Nikita is Application Specialist for Micro-Imaging Division at DSS Imagetech Pvt Ltd. She is currently responsible for pre-sales and post-sales activities for Applied Spectral Imaging (ASI) products in Cytogenetics and Pathology. Her portfolio includes handling interactive and automated systems for Karyotyping, FISH, Spectral Karyotyping , IHC and Digital Imaging. She also holds an experience in the Diagnostic sector on Molecular genetics. Her academic profile possesses Masters in Applied Genetics , PG- Diploma in Medical Lab Technology , PG- Diploma in Bionanotechnology and Advanced Diploma in Software Engineering.
